Water Tank Wire Drawing Machine
The DLW-350 is a high-speed water tank wire drawing machine designed to reduce wire diameter from 2.2 mm to 0.6 mm with precision and efficiency. Equipped with 12 CD dies and a 30 kW motor, it reaches speeds up to 700 m/min, ensuring stable performance and excellent wire surface quality. Its water cooling system minimizes die wear and improves wire finish, making it ideal for processing fine wire. With a compact design and 350 mm coiling capacity, the DLW-350 is perfect for users looking to lower costs and boost productivity. DAPU offers custom solutions to meet your exact production needs.
Key words:
Classification:
Product Description
Description
This water tank wire drawing machine is made up of wire coils, motor and mechanical transmission device. It is widely applied to draw the low-carbon steel wire and part of nonferrous metals wire.

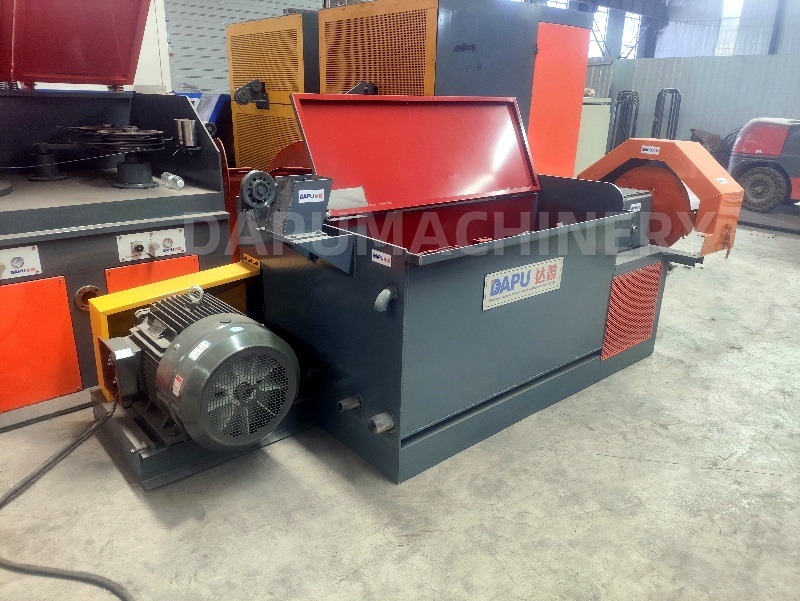

Machine Display
Technical Parameter
| Model | DLW-350 |
| Inlet wire diameter | Max. 2.2 mm |
| Output wire diameter | Min. 0.6 mm |
| Drawing die size | 2.2 - 2.0 - 1.8 - 1.6 - 1.4 - 1.25 - 1.1 - 1.0 - 0.9 - 0.8 - 0.7 - 0.6 mm |
| Drawing die material | CD mold |
| Drawing speed | Max. 700 m/min |
| Motor capacity | 30 kW |
| Wire coiling diameter | 350 mm |
| Wire coiling way | Trunk type |
| Overall dimension (L×W×H) | 2400 × 1100 × 1100 mm |
| Weight | 1900 KG |
Auxiliary Equipment

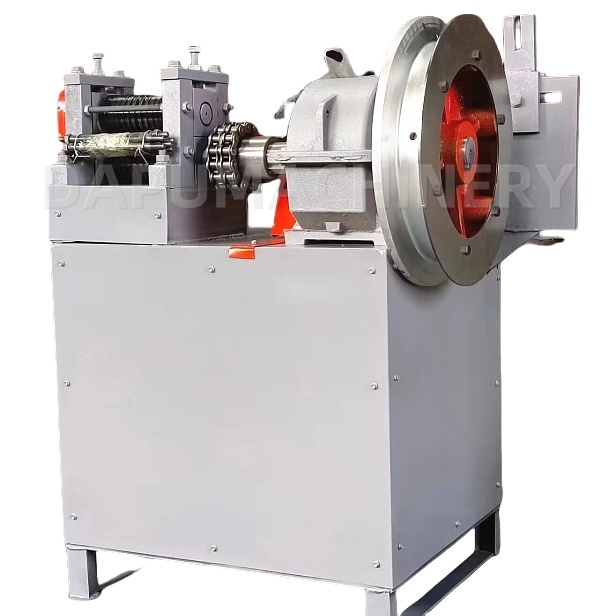

Head pointing machine

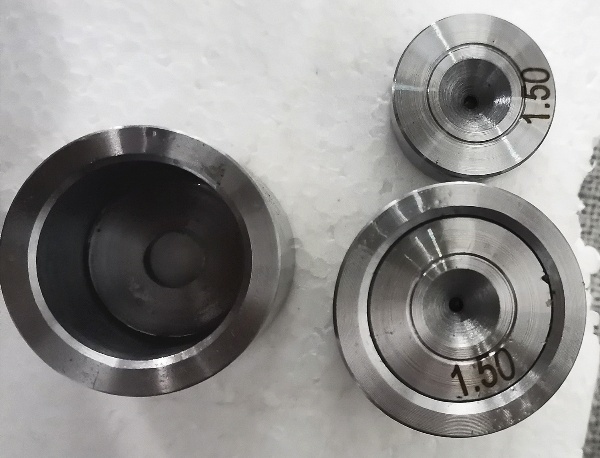

Drawing die
Application
It is widely applied to draw the low-carbon steel wire and part of nonferrous metals wire.

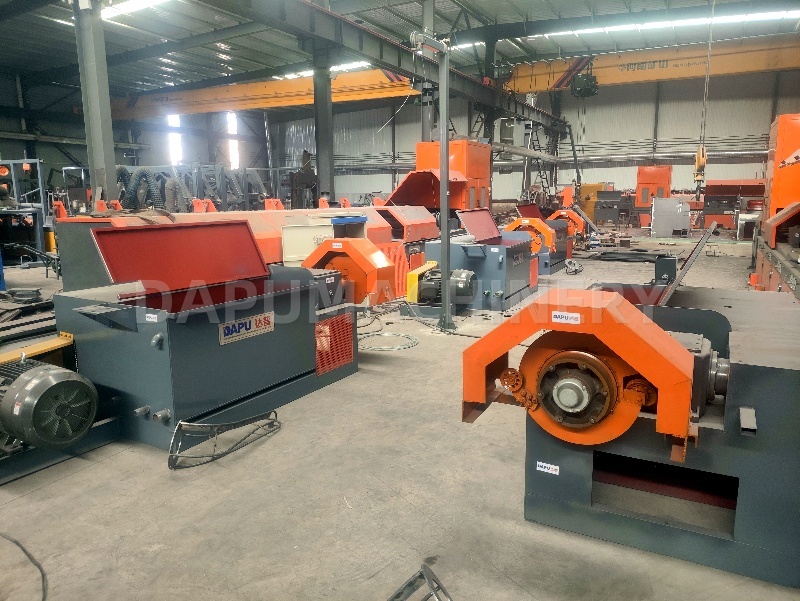

Global Cases
FAQ
1. What is a water tank wire drawing machine and how does it work?
A water tank wire drawing machine is designed to reduce the diameter of metal wires through a series of dies while submerged in water. The water helps cool the wire and reduce friction during high-speed drawing, ensuring smooth surface finish and better die life.
2. What materials can be processed with a water tank wire drawing machine?
These machines are suitable for drawing low carbon steel, stainless steel, galvanized wire, and other ferrous/non-ferrous metals. They're commonly used in making binding wire, nails, fencing wire, and construction-grade wire.
3. What are the advantages of using a water tank type over dry wire drawing machines?
Water tank machines offer better cooling, higher drawing speed, and less surface oxidation. This results in cleaner wire, longer equipment life, and more efficient production compared to dry or soap-based drawing methods.
4. How to choose the right model of water tank wire drawing machine?
The right model depends on:
- Input and output wire diameters
- Type of material (carbon steel, stainless, etc.)
- Daily production volume
- Power and speed requirements
For example, if you're processing 6mm wire down to 2mm, you'll need multiple drawing passes and a machine with high tensile tolerance.
5. Is the water tank drawing machine suitable for small-scale factories?
Yes. Compact models are available with low power consumption and small footprint, ideal for startups or workshops with limited space. These machines still offer industrial-level precision and output.
6. What maintenance is required for a water tank wire drawing machine?
Regular maintenance includes:
- Cleaning the water tank to avoid contamination
- Checking die wear and replacing when needed
- Lubricating moving parts
- Monitoring motor and speed controller performance
Routine checks ensure smooth operation and extend machine life.
