Hexagonal Wire Mesh Machine
Key words:
Classification:
Product Description
 |
| Description: |
This machine adopts the principle of clockwise and counterclockwise twisting. Our factory produce the straight and reverse twisted hexagonal wire netting machine with the models such as 1/2"、5/8"、3/4"、1"，1-1/2"、2" and so on .Based on the principle of clockwise and counterclockwise, there series of products are suitable to manufacture hexagonal wire netting whose cell size is compatible with the weaving machine. With a bright prospect ,these products are widely used in fences of farmland and grazing land, reinforced ribs of building walls and other nets for separation.
Based on the principle of clockwise and counterclockwise twisting, it is unnecessary to make the iron wire spring form for this machine to work consecutively so that the productivity increases a lot.
| Machine Display: |
| Technical Parameter: |
| Model | DP-CSR |
| Raw material | Galvanized steel wire, PVC-coated wire |
| Wire diameter | 0.4-2.2mm |
| Mesh opening size | 1/2″(15mm); 3/4″(20mm); 1″(25mm or 28mm); 2″(50mm); 3″(75mm or 80mm) |
| Mesh width | Normally 2600mm, 3000mm, 3300mm, 4000mm, 4300mm, 4700mm |
| Working speed | 1/2” mesh, 60-65M/hour * Roll number 3/4” mesh, 75-80M/hour * Roll number 1” mesh, 95-100M/hour * Roll number 2” mesh, 150-160M/hour * Roll number 3” mesh, 180M/hour * Roll number |
| Number of twists | 6 |
| Motor capacity | 2.3kw thorn + 2.3kw dislocation + 2.3kw board + 4.4kw brace |
| Note | 1. One set machine can only do one mesh opening. 2. One set machine can weave 2-4 rolls of mesh at the same time. |
1. It can reach 65 cells per minute as its maximum speed and adjust the speed depending on different raw materials in order to reduce breaking rate.
2. Wide breadth of net. NW can weave double 1.1meters width, and can weave single 2.2meters.
3. Tidy and consistent cell distribution .It is easy to take a thread anywhere.
4. Equipped with clutch brake and spot start. Easy to operate and reliable. Fewer requirements for operators.
5. Reliable centralized lubrication. Easy to use.
6. Solid and durable. Easy to maintain and adjust.
| Auxiliary Equipment: |
 |

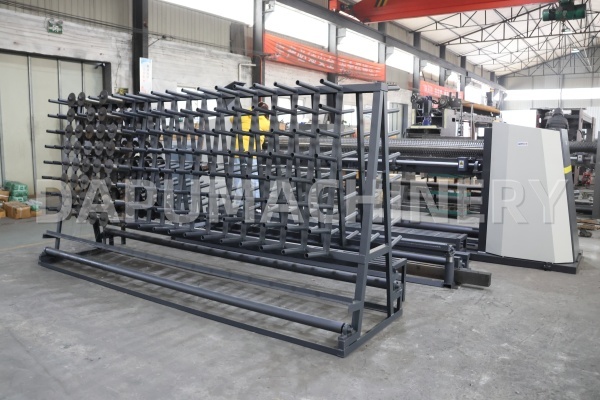

| Pay-off rack |
| Finished Products & Application: |
 |
 |
