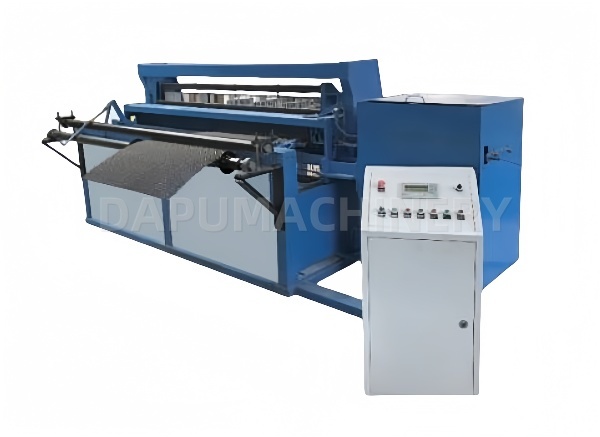

Automatic Crimped Wire Mesh Machine
The Automatic Crimped Wire Mesh Machine, driven by a powerful servo motor and controlled by a PLC system, ensures efficient and precise weaving of flat mine screen mesh. This automated process simplifies operation and delivers stable performance, ideal for reliable screening and filtering in mining and coal industries.
Key words:
Classification:
Product Description
 |
 |
| Description: |
This Automatic Crimped Wire Mesh Machine is the use of a large diameter wire by ginning machines for rolling into shape, weaving various mechanical specifications for the square hole sieve series Weaving Machines. The product structure compact, easy to operate, can be woven mesh 2 MM--50MM wire diameter 1 MM--8MM, weaving width of 1-4 meters, the aircraft products are widely used in mining for classification purposes sieve (commonly known as the Mine Screen net), the aircraft also known as Mine screen loom.
| Technical Parameter: |
| Model | Fully Automatic type |
| Wire diameter (mm) |
2-5 |
| Mesh opening (mm) |
5-50 |
| Width of the mesh (meter) |
2 |
| Motor (kw) |
1.5 |
| Speed (r/min) |
20-30 |
| Voltage | 380V 3phase 50Hz (or customized) |
| Weight (kg) |
2500 |
| Auxiliary Equipments: |
 |
 |
 |

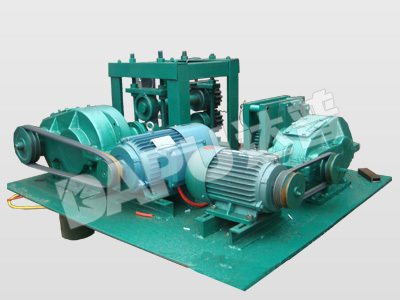

| Light automatic crimping wire breaking machine | Wire pay-off, 2sets | Mold, 1set |
| Finished Products & Application: |
The products is widely used in mining for classification purposes sieve (commonly known as the Mine Screen net), the aircraft also known as Mine screen loom.
 |
 |
 |
 |
Machine operating principle：
The Automatic Crimped Wire Mesh Machine is controlled by a PLC system and powered by a high-power servo motor. Light automatic rolling of warp wire . After the flower cutting machine is embossed, the entire work process of weft rolling, threading, mesh weaving, and heddle changing is completed on the mesh weaving machine.and woven into a web.
Machine advantages：
After the machine preparation is completed, automated production can be carried out, with simple operation and stable performance.The woven mesh surface is flat, the wire feeding is accurate, and the error is small.
Machine usage:
This Automatic Crimped Wire Mesh Machine is mainly used to weave mine screens. The products are mainly used for screening and filtering products in large mines, coal yards and other industries.
